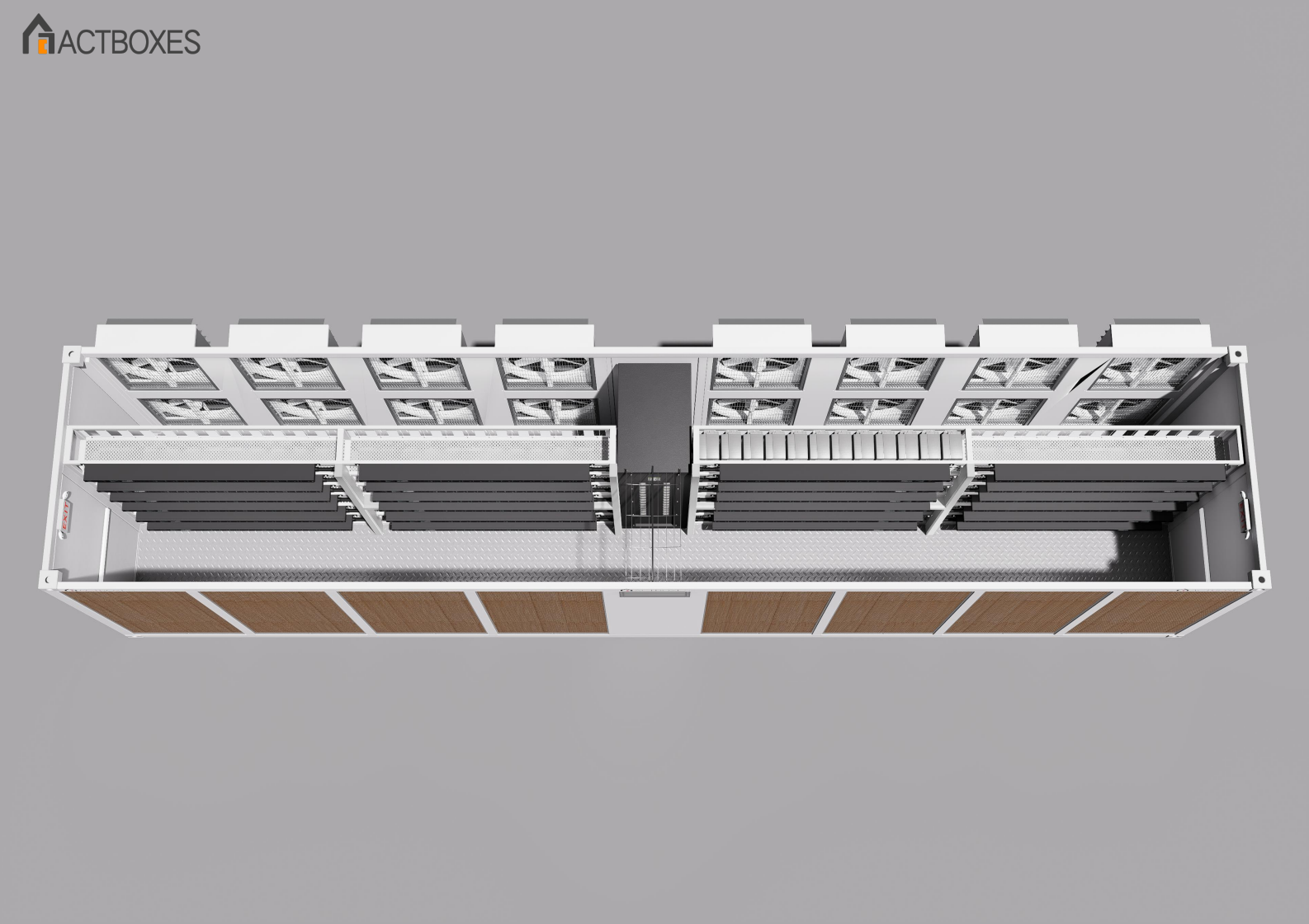

The Air Cooling Container AC40 For 288 Units Air Cooling Miners is in stock and ready to ship at MiningGear Co. Buy the Air Cooling Container AC40 at the best rate possible, every order includes a free compatible PSU, secure bank-wire or crypto payment, and fully tracked, insured worldwide DDP shipping, warehouse to your door in 80+ countries.
Product Description
| The material configuration of 40ft Mining Container | |||||
| Part | Part Name | Specification | Unit | Quantity | Remark |
|
Main structure |
40ft container | 11980*2280*2540mm | pcs | 1 | |
| Lock | Bullet Lock | set | 4 | ||
| Door | pcs | 4 | |||
| Shelves | 5520*360*2280mm | set | 2 | Galvanized material | |
|
Circuit system |
Escape Light | pcs | 2 | ||
| Socket surface mounted bottom box | pcs | 4 | |||
| Socket | pcs | 2 | |||
| Single-Gang Switch | pcs | 2 | |||
| Lighting | LED Tri-proof Light 50 | pcs | 4 | ||
| Lighting circuit | 1.5² | m | 60 | ||
| Socket + emergency light | 1.5² | m | 30 | ||
|
Water curtain fan system |
Dust filter | pcs | 24 | ||
| Fan motor | ( 1.1kw) | unit | 16 | ||
| Exhaust fan | 1000*1000*400 | unit | 16 | ||
| Fan circuit | 2.5² | m | 120 | ||
| Fan quick connector | pcs | 16 | |||
| Power
cabinet |
Power cabinet | 10500*750*2200; 2000A/3P | set | 1 | 2000A+24*100A |
|
Electrical System |
PDU | 200-240/346-
415vac,50/60Hz |
pcs | 24 | 1*C13+12*C19 |
|
PDU wires |
25²Black | m | 220 | ||
| 25²White | m | 75 | |||
| 16²Yellow Green | m | 75 | |||
| AD42.5 bellows | 0.25*28strip | m | 7 | ||
| AD42.5 connector | pcs | 48 | |||
|
Network system |
Network cable + label | set | 1 | ||
| 24-port switch | pcs | 15 | |||
|
Auxiliary Materials |
Hot and cold isolation panels | layer | 6 | ||
| Stainless steel self-tapping screws | 4.2*25 big cap | box | 2 | ||
| Stainless steel rivets | 4.2*16 | box | 2 | ||
| Structural adhesive | pcs | 10 | |||
| Sticker Logo | set | 1 | |||
| The material list of 2000A switch cabinet | |||||
| Project N | o2000A switch cabinet | Project No. | 288 air-cooling mining container | ||
| It No. | Product Name | KLS-PSD 2000A（288set） | Unit | Qty | Brand |
| 1 | Frame Breaker | 2000A(Fixed） | pcs | 1 | CHINT |
| 2 | VFD | 35A | pcs | 1 | /// |
| 3 | Molded case circuit breaker | 100A3P | pcs | 24 | CHINT |
| 4 | Molded case circuit breaker | 30A2P | pcs | 1 | CHINT |
| 5 | Molded case circuit breaker | 63A3P | pcs | 1 | CHINT |
| 6 | Motor protector | 2.5-4A | pcs | 16 | CHINT |
| 7 | Leakage insurance | 32A2P | pcs | 1 | CHINT |
| 8 | Miniature circuit breakers | B1H2C10 | pcs | 2 | CHINT |
| 9 | Multi-function instrument | 3-phase meter | pcs | 1 | CHINT |
| 10 | Instrument Transformer | 2000A 5 | pcs | 3 | CHINT |
| 11 | Fan | 220~277VAC | pcs | 2 | |
| 12 | Lightning arrester | T2 40KA | pcs | 1 | CHINT |
| 13 | Fuse | 30A/1P | pcs | 4 | CHINT |
| 14 | Fuse | 5A/1P | pcs | 5 | CHINT |
| 15 | Power indicator | 220-277V White | pcs | 1 | CHINT |
| 16 | Power indicator | 220-277V Grenn | pcs | 1 | CHINT |
| 17 | Power indicator | 220-277V Red | pcs | 1 | CHINT |
| 18 | Power indicator | 220-277V Yellow | pcs | 1 | CHINT |
|
19 |
Secondary Line |
Large plastic shell connected to small plastic shell copper busbar |
batch |
1 |
Tinned copper |
|
20 |
Secondary Line |
The fan uses UL1015 14AWG+ instrument power and signal lines |
m |
100 |
JiukaiUL758 |
| 21 | Copper busbar | 60*10mm+120*10 | Kg | Guoyou | |
| 22 | Artificial materials and auxiliary materials | Copper nose, heat shrink tubing, | batch | 1 | Guoyou |
| 23 | Case | 2200*750*1050*2mm | pcs | 1 | Guoyou |
